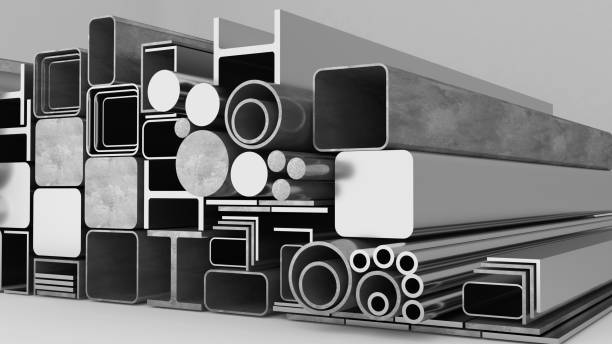

Aluminium hex bars are durable and lightweight, offering excellent corrosion resistance and machinability. They are used in various structural, industrial, and engineering applications where a hexagonal cross-section is beneficial for design and assembly.
Description: Aluminium 6061-T6 is a heat-treatable alloy known for its excellent mechanical properties, good corrosion resistance, and weldability. It is commonly used in structural applications due to its strength and versatility.
Specifications:
Chemical Composition:
- Aluminium (Al): 95.85-98.56%
- Magnesium (Mg): 0.8-1.2%
- Silicon (Si): 0.4-0.8%
Mechanical Properties:
- Tensile Strength: 310 MPa
- Yield Strength: 275 MPa
Physical Properties:
- Density: 2.70 g/cm³
- Thermal Conductivity: 170 W/m·K
Uses:
- Structural supports
- Frames
- Aerospace components
- Automotive parts
Description: Aluminium 7075-T6 is a high-strength, heat-treatable alloy known for its exceptional fatigue resistance and toughness. It is used in high-stress applications where strength and durability are critical.
Specifications:
Chemical Composition:
- Aluminium (Al): 87.1-91.4%
- Zinc (Zn): 5.1-6.1%
- Magnesium (Mg): 2.1-2.9%
Mechanical Properties:
- Tensile Strength: 510-540 MPa
- Yield Strength: 430-480 MPa
Physical Properties:
- Density: 2.81 g/cm³
- Thermal Conductivity: 130 W/m·K
Uses:
- Aircraft structures
- Defense equipment
- High-stress components
- Automotive parts
Description: Aluminium 2024-T351 is an aluminium-copper alloy known for its high strength and excellent fatigue resistance. It is primarily used in aerospace and other high-performance applications.
Specifications:
Chemical Composition:
- Aluminium (Al): 90.7-94.7%
- Copper (Cu): 3.8-4.9%
- Magnesium (Mg): 1.2-1.8%
Mechanical Properties:
- Tensile Strength: 470-510 MPa
- Yield Strength: 325-370 MPa
Physical Properties:
- Density: 2.78 g/cm³
- Thermal Conductivity: 121 W/m·K
Uses:
- Aircraft components
- Truck wheels
- Hydraulic systems
- Structural applications
Description: Aluminium 6082-T6 is a medium-strength, heat-treatable alloy known for its good corrosion resistance, weldability, and machinability. It is often used in applications requiring high strength and resistance to stress corrosion.
Specifications:
Chemical Composition:
- Aluminium (Al): 95.2-98.3%
- Magnesium (Mg): 0.6-1.2%
- Silicon (Si): 0.7-1.3%
Mechanical Properties:
- Tensile Strength: 290-340 MPa
- Yield Strength: 250-300 MPa
Physical Properties:
- Density: 2.70 g/cm³
- Thermal Conductivity: 180 W/m·K
Uses:
- Trusses
- Bridges
- Cranes
- Transportation structures
Description: Aluminium 5083-H112 is a high-magnesium alloy with outstanding resistance to corrosion, especially in marine environments. It offers good weldability and strength, making it suitable for harsh conditions.
Specifications:
Chemical Composition:
- Aluminium (Al): 92.1-94.6%
- Magnesium (Mg): 4.0-4.9%
- Manganese (Mn): 0.4-1.0%
Mechanical Properties:
- Tensile Strength: 275-350 MPa
- Yield Strength: 215 MPa
Physical Properties:
- Density: 2.66 g/cm³
- Thermal Conductivity: 121 W/m·K
Uses:
- Shipbuilding
- Marine structures
- Pressure vessels
- Cryogenic tanks
