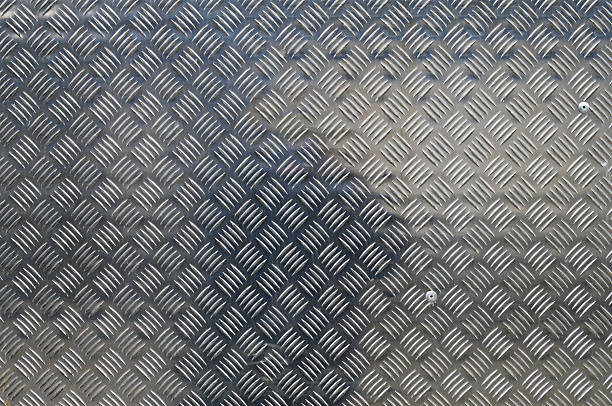

Aluminium chequered sheets feature a patterned surface with raised diamonds or other shapes, providing excellent slip resistance and durability. They are lightweight, corrosion-resistant, and versatile, making them ideal for a range of industrial, commercial, and decorative applications.
Description: Aluminium 1050-H14 is a pure aluminium alloy known for its excellent corrosion resistance and good formability. It is commonly used for applications requiring high purity and ease of fabrication.
Specifications:
Chemical Composition:
- Aluminium (Al): 99.5% min
- Iron (Fe): 0.4% max
- Copper (Cu): 0.05% max
Mechanical Properties:
- Tensile Strength: 110-140 MPa
- Yield Strength: 40-70 MPa
Physical Properties:
- Density: 2.71 g/cm³
- Thermal Conductivity: 235 W/m·K
Uses:
- Decorative panels
- Light-duty flooring
- Wall cladding
Description: Aluminium 3003-H14 is an alloy with enhanced strength and corrosion resistance, making it suitable for various industrial applications. It offers good workability and is often used where moderate strength is required.
Specifications:
Chemical Composition:
- Aluminium (Al): 89.0-91.0%
- Manganese (Mn): 1.0-1.5%
- Copper (Cu): 0.12% max
Mechanical Properties:
- Tensile Strength: 130-170 MPa
- Yield Strength: 80-110 MPa
Physical Properties:
- Density: 2.73 g/cm³
- Thermal Conductivity: 190 W/m·K
Uses:
- Medium-duty flooring
- Decorative and functional panels
- Storage tanks
Description: Aluminium 5052-H32 is a high-strength alloy with exceptional resistance to corrosion, particularly in marine environments. It is well-suited for applications requiring durability and resistance to harsh conditions.
Specifications:
Chemical Composition:
- Aluminium (Al): 97.7% min
- Magnesium (Mg): 2.2-2.8%
- Chromium (Cr): 0.15-0.35%
Mechanical Properties:
- Tensile Strength: 230-280 MPa
- Yield Strength: 180 MPa
Physical Properties:
- Density: 2.68 g/cm³
- Thermal Conductivity: 138 W/m·K
Uses:
- Heavy-duty flooring
- Marine applications
- Pressure vessels
Description: Aluminium 6061-T6 is a heat-treatable alloy known for its high strength, good corrosion resistance, and machinability. It is used in demanding applications where high performance is required.
Specifications:
Chemical Composition:
- Aluminium (Al): 95.85-98.56%
- Magnesium (Mg): 0.8-1.2%
- Silicon (Si): 0.4-0.8%
Mechanical Properties:
- Tensile Strength: 310 MPa
- Yield Strength: 275 MPa
Physical Properties:
- Density: 2.70 g/cm³
- Thermal Conductivity: 170 W/m·K
Uses:
- Structural panels
- Heavy-duty flooring
- Aerospace components
