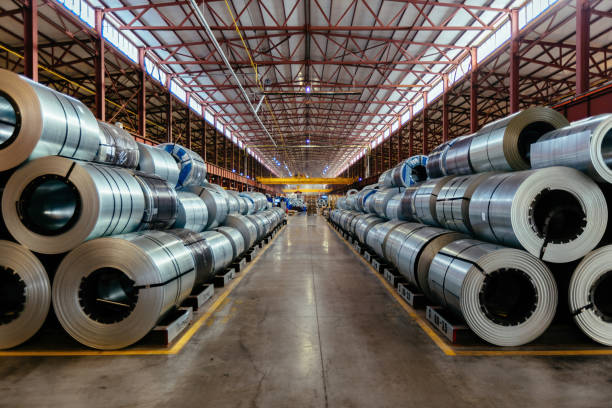

Aluminium coils are flexible, lightweight, and highly corrosion-resistant, making them ideal for a range of industrial and commercial applications. They are produced by rolling aluminium into thin, continuous strips, which can be further processed or used in their coil form.
Description: Aluminium 1050-H14 is a pure aluminium alloy known for its excellent corrosion resistance, good thermal and electrical conductivity, and high ductility. It is widely used for applications requiring high purity and formability.
Specifications:
Chemical Composition:
- Aluminium (Al): 99.5% min
- Iron (Fe): 0.4% max
- Copper (Cu): 0.05% max
Mechanical Properties:
- Tensile Strength: 110-140 MPa
- Yield Strength: 40-70 MPa
Physical Properties:
- Density: 2.71 g/cm³
- Thermal Conductivity: 235 W/m·K
Uses:
- Chemical processing
- Food and beverage packaging
- Heat exchangers
- Electrical applications
Description: Aluminium 3003-H14 is an alloy containing manganese, which enhances its strength and resistance to corrosion. It offers good workability and is used in a variety of manufacturing applications.
Specifications:
Chemical Composition:
- Aluminium (Al): 89.0-91.0%
- Manganese (Mn): 1.0-1.5%
- Copper (Cu): 0.12% max
Mechanical Properties:
- Tensile Strength: 130-170 MPa
- Yield Strength: 80-110 MPa
Physical Properties:
- Density: 2.73 g/cm³
- Thermal Conductivity: 190 W/m·K
Uses:
- Cookware
- Automotive panels
- Storage tanks
- Roofing sheets
Description: Aluminium 5052-H32 is a high-strength, corrosion-resistant alloy with excellent weldability. It is commonly used in marine and automotive applications due to its durability and resistance to seawater.
Specifications:
Chemical Composition:
- Aluminium (Al): 97.7% min
- Magnesium (Mg): 2.2-2.8%
- Chromium (Cr): 0.15-0.35%
Mechanical Properties:
- Tensile Strength: 230-280 MPa
- Yield Strength: 180 MPa
Physical Properties:
- Density: 2.68 g/cm³
- Thermal Conductivity: 138 W/m·K
Uses:
- Marine environments
- Automotive fuel tanks
- Pressure vessels
- Aircraft structures
Description: Aluminium 6061-T6 is a heat-treatable alloy known for its high strength, good corrosion resistance, and excellent machinability. It is widely used in structural and aerospace applications.
Specifications:
Chemical Composition:
- Aluminium (Al): 95.85-98.56%
- Magnesium (Mg): 0.8-1.2%
- Silicon (Si): 0.4-0.8%
Mechanical Properties:
- Tensile Strength: 310 MPa
- Yield Strength: 275 MPa
Physical Properties:
- Density: 2.70 g/cm³
- Thermal Conductivity: 170 W/m·K
Uses:
- Structural components
- Aerospace parts
- Marine applications
- Automotive parts
Description: Aluminium 7075-T6 is a high-strength, heat-treatable alloy known for its exceptional fatigue resistance and toughness. It is used in high-performance applications where strength is critical.
Specifications:
Chemical Composition:
- Aluminium (Al): 87.1-91.4%
- Zinc (Zn): 5.1-6.1%
- Magnesium (Mg): 2.1-2.9%
Mechanical Properties:
- Tensile Strength: 510-540 MPa
- Yield Strength: 430-480 MPa
Physical Properties:
- Density: 2.81 g/cm³
- Thermal Conductivity: 130 W/m·K
Uses:
- Aerospace structures
- Defense equipment
- High-stress components
- Structural parts
